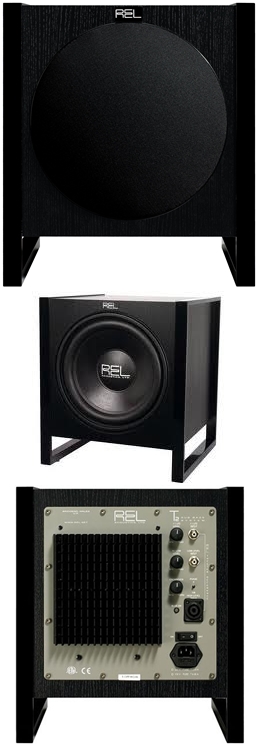

Specifications for the REL T 2 Subwoofer
Enclosure Type Closed box
Amplifier Power 200W high current Class AB
Drive Unit 1x8" Heavy Duty ULT active driver
1x8" ULT Passive Radiator
Variable Crossover 30Hz to 120Hz
T 3 Dimensions 375mm Height (including feet)
335mm Width
394mm Depth (including grille)
Weight 15kg
Monday, October 31, 2011
Friday, October 28, 2011
Sennheiser RS 140 Wireless Balanced Headphones
Specification for Sennheiser RS 140
Main Features
Style Headband
Connection Wireless
Purpose Standard Use
Main characteristics
Connectivity: Wireless
Usage: Consumer
Compatibility: Home Audio
Design: Over the Head
Sound Mode: Stereo
Technical Features
Frequency Response: 18 Hz - 21000 kHz
Sensitivity: 110 dB
Wireless Features
Wireless Technology: RF
Battery Life: 23 Hours
Max. Transmit Range: 490 ft. / 150 m
Other Features
Volume Control: With Volume Control
Other
Weight: 280.1 g
Enacom Line Cable
Line Cable Enacom
Connect the Line Cable ENACOM between your amplifier and each audio component and clean up the clutter.
http://www.combak.net/enacom/EnacomMain.html
Friday, October 21, 2011
JM LAB FOCAL CHORUS
Description 2-way shielded sealed center channel
Speakers 2x6-1/2'' shielded Polyglass mid-bass, 1'' TNC inverted dome tweeter
Frequency response (+/- 3 dB) 57 Hz - 28 kHz
Sensitivity (2,83 V / 1 m) 91 dB
Nominal impedance 8 Ohms
Crossover frequencies 2400 Hz Max.
power handling with music program 100 W
Dimensions (H x W x D) mm 180 x 500 x 285 mm
Weight 9.5 kg
Friday, October 14, 2011
Pro Ject Debut II
PROJECT
DEBUT II TURNTABLE SPECIFICATIONS
|
|
Cartridge supplied: | Ortofon OM5E |
Tone Arm: | Fixed counter-weight design |
Belt or direct drive: | Belt |
Platter: | Metal platter |
Pitch Control: | No |
Output: | Encaptured phono cables and earth lead. |
H x W x D (mm): | 113 x 415 x 325 (lid clearance 420 mm) |
Monday, October 10, 2011
SOUND STAGE Pre Amp Power Mono Block
Sound Stage Pre Amplifier and Power Amplifier Mono Block
Pre Amplifier Tube 2 x 12ax7
Power Amplifier Tube 4 x EL84
Sunday, October 9, 2011
Saturday, October 8, 2011
Audiomeca Enkianthus DAC
- Appearance: glossy stainless steel, black polished metacrylate and gold.
- Dimensions: 430mmL x 360mmD x 103mmH
- Weight: 7 KG
- Cabinet: extremely rigid, heavy and non resonant
- Mechanical grounding: through one concealable rear spike
- Selectable digital inputs: 2 RCA coax (S/PDIF, 75ohms, 0.5V), BNC coax (S/PDIF, 75ohms, 0.5V), AES/EBU XLR (110ohms, 5V), AT&T ST-glass (option)
- Digital output: on RCA coax (to DAT, DCC etc..)
- Unbalanced Audio outputs: on 2 x RCA coax connectors (0.1ohm, 2Vrms)
- Balanced Audio outputs: on 2 x XLR connectors (0.1ohm, 2Vrms)
- All golden RCA coax connectors with Teflon insulation
- True 24 x 192 DAC conversion
- Resolution up to 24 bits (even 32)
- Automatic locking on all sampling frequencies: 32, 44.1, 48, 64, 88.2, 96, 176.4, 192kHz
- Lock on input data indicator
- Phase invert facility performed in the digital domain
- No
PLL after the input chip. Input and output clock totally
independent. A new feature and a breakthrough in the digital
processing techniques - Virtually zero jitter
- 40 bit floating point DSP for sampling rate conversion, interpolation and signal enhancement
Upgradeable open structure to any new signal format and to improved new algorithm thanks to modular construction, change. programmable gate array and DSP chips - Audiophile Audio stages with perfect phase linearity.
- Superb and neutral sound quality
- Separated power regulations for digital, audio and input sections
-
Special attention to high frequencies shielding cabinet using
absorptive and reflective properties of various material
give combination. - AC sections and Audio stages located into a separated copper box mechanically isolated from the main cabinet
Special attention paid to PCB layout - Measured performances to match (on Audio Precision)
- Frequency response: set for optimal transient response
- THD+N (1Khz, 0dBFs) better than 140dBr
- Channel separation: 125dB
- Low power consumption: 25W at 230V
- Alimentation: 100/230Volts 50/60Hz
Audio Research MCP-2
Specifications
Frequency response | ±.25dB from 20Hz to20kHz -3dB points, 5Hz and 100kHz |
---|---|
Distortion (THD) | Harmonic distortion: Less than .005% at rated output,
IHF load. Intermodulation distortion: Less than .005% at rated output, IHF load. |
Noise & hum | Less than 50nV equivalent noise with 10 ohm input (RIAA weighted). |
Gain | Switch selectable, 10dB, 16dB, 22dB, 28dB, 34dB. |
Input impedance | Switch selectable, 10 ohms, 30 ohms, 100 ohms, 300 ohms and special (can be any value from 3 ohms to 1 kOhms). |
Output impedance | 50 ohms |
Maximum inputs | 50 mV RMS |
Rated outputs | .25V RMS |
Power supplies | |
Power requirements | 105-120/210-240 VAC, 50/60Hz, 20 watts. |
Other | |
Dimensions | |
Weight | 12 lbs. (5.5 kg) Net, 16 lbs. (7.3 kg) Shipping |
Friday, October 7, 2011
Audio Research D 75 A Power Amp Mono Block
Specifications
Power output 75 Watts RMS per channel minimum into 4, 8, or 16 ohm load from 20 Hz to 15 KHz with less than 1% total harmonic distortion
Power bandwidth
Frequency response
Input sensitivity 1.5V for rated output
Input impedance 80K ohms at 20 Hz, 30K ohms at 15 KHz
Output taps
Output regulation
Overall negative feedback
Damping factor 14 at 8 ohms (1 KHz)
Distortion
Slew rate
Rise time
Hum & noise More than 80dB below rated output
Power supply energy storage
Power requirements 100,120,200,240 VAC at 50-60 Hz, 550 Watts at rated output
Tube complement (4)12AX7, (8) 6FQ7, (2 matched pairs) 6550, (1) 5881
Other
Dimensions 19" W x 7" H x 12¼" D
Weight 52 lbs.Net; 63 lbs. Shipping
Cain & Cain Abby
Cain & Cain: Abby Specifications
Cabinets and parts are in stock at factory, finished to order
Finishing program is essentially unlimited. Need a custom color ? Just ask
Standard finish is Natural Alder
Dark Finishes at additional cost - walnuts, mahoganies, cherry’s and guitar finishes
Cabinets are made of solid alder wood, not one inch of MDF present
Also now offered in natural solid maple wood at additional cost
Ported, modified Voight-pipe design which utilize single-drivers from legendary Japanese manufacturer Fostex
.
Single-driver, crossoverless
Normal Version: Fostex FE 166e driver
Nearfield Version: Fostex FF 165k driver
Sensitivity ...... 95db ~ 1 watt ~ 1 meter
Frequency Response ...... 50hz-20khz (+/- 4db)
Nominal Impedance ..... 8 ohms
Minimum Impedance .... 8 ohms
70"H x 9"D x 9"W (5.8ft H x 0.75ft D x 0.75ft W)
All Cardas - internal wiring, solder, flux and copper binding posts
Eight very heavy and sharp spikes
Counterpoint SA 7.1
Technical Summary:
The unit has two 12AX7 tubes in the phono stage and originally had two 12AY7's in the line stage. Later versions used a two 6DJ8's in the line stage to overcome a tendency of the older tube to "whistle." As with all Counterpoint preamps, there are two gain stages in the phono section with passive riaa equalization. All versions (12AY7 line stage, and the first versions of the 6DJ8 design) have a gain stage followed by a cathode-follower. Later units have a MOSFET source-follower after the 6DJ8 gain stage. There is no loop feedback Three line-level inputs. There are single pairs of tape out and main out. Input Selector, Tape monitor, Balance, Volume, Mute and Power controls. Aluminum front panel finished in black or silver anodize.
Shunyata Hydra 6
Trident Defense System
- 6,000 volts and 60,000 amps of surge protection
- NextGen thermally protected TMOVs
- Shunyata designed Venom filters (5-element)
- Hydraulic electromagnetic circuit breaker (over current protection)
- Each outlet individually filtered
- Solid copper power distribution buss
- Equivalent to an incredible 7-gauge wire
- No point-point wiring
- Detachable 20-amp power inlet
- 2400 watts (continuous – not a peak rating)
- 20-amps continuous
- 14 gauge all metal chassis
- Professional rack mount faceplate
- Threaded footers for after-market cones
- All inlets and outlets mounted on back
- Width: 19” Height: 3.5” Depth: 5.5”
- Weight: 8.0lbs
Krell CD-1
Krell CD - 1
CD / SACD / CD-R
SPECIFICATIONS
TRANSPORT Philips CDM-1M KI I with Hall effect motor; swing-arm design in a unicast frame.
LASER Single beam with glas~: lens.
DAC Single Bit with 20 Bit resolution
DIGITAL OUTPUTS 1 Fibre Optic via standard interface 1 Coaxial via RCA connector. 1 AT&TF ibre Optic via ST connector (optional)
ANALOG OUTPUTS 1 Single-ended output via RCA connectors 1 Balanced output via XLR connectors Balanced XLR output pin configuration p!n 1 Ground (shield) p!n 2 0 degrees (non-inverting) pin 3 180 degrees (inverting)
REMOTE CONTROL Wireless infrared
SPECIAL PURCHASE OPTIONS AT&Tw ide bandwidth fibre optic transmitter Black anodized face plate
DIMENSIONS 19" Wide 12" Deep 4" High with feet
WEIGHT 11 pounds unit only 22 pounds in packing
SPECIFICATIONS
TRANSPORT Philips CDM-1M KI I with Hall effect motor; swing-arm design in a unicast frame.
LASER Single beam with glas~: lens.
DAC Single Bit with 20 Bit resolution
DIGITAL OUTPUTS 1 Fibre Optic via standard interface 1 Coaxial via RCA connector. 1 AT&TF ibre Optic via ST connector (optional)
ANALOG OUTPUTS 1 Single-ended output via RCA connectors 1 Balanced output via XLR connectors Balanced XLR output pin configuration p!n 1 Ground (shield) p!n 2 0 degrees (non-inverting) pin 3 180 degrees (inverting)
REMOTE CONTROL Wireless infrared
SPECIAL PURCHASE OPTIONS AT&Tw ide bandwidth fibre optic transmitter Black anodized face plate
DIMENSIONS 19" Wide 12" Deep 4" High with feet
WEIGHT 11 pounds unit only 22 pounds in packing
Furutech ETP 60
Furutech e-TP60 power strip's specifications |
Outputs | 6 Outlets |
Voltage | AC 220-230 V 50/60 Hz |
Current | 15 A |
Dimensions | 200 x 130 x 60 mm |
Net Weight | 0.94 Kgs |
Luxman MQ 70
SPECIFICATIONS LUXMAN MQ-70
POWER OUTPUT: 45 watts per channel RMS into 8 or 4 ohm loads
at any frequency from 25Hz to 30kHz.
T.H.D.: less than 0.1% (1kHz at 10 watts into 8 ohms),
no more than 0.5% (1kHz at rated power output
into 8 ohms).
FREQUENCY RESPONSE: 10Hz~40kHz (-1dB).
INPUT SENSITIVITY: 650mV.
INPUT IMPEDANCE: 80k ohms.
S/N RATIO: better than 110dB (input shorted, IHF-A weighted).
CONTROLS: input Level Controls for each channel.
VACUUM TUBE COMPLEMENT: 6CA7 (four), 6240G (two), 12AX7 (two).
OUTPUT TRANSFORMERS: OY-15-6.5KHP High Power Type (two).
POWER CONSUMPTION: 190 watts.
DlMENSIONS: 405(W) x 165(H) x 240(D) mm (16.0" x 6.5" x 9.5").
WEIGHT: 17.0 kgs (37.4 Ibs.)
Tannoy Prestige Stirling
PERFORMANCE | |
Recommended amplifier power | 30 -150 Watts |
Continuous power handling | 95 Watts RMS |
Frequency response | 39Hz - 25kHz -6dB |
Sensitivity | 91dB (2.83 Volts @1 metre) |
Nominal impedance | 8 Ohms |
DRIVE UNITS | |
Dual Concentric high frequency | 25mm (1.00) aluminium alloy dome with Tulip Waveguide |
Dual Concentric low frequency | 250mm (10.00") treated paper pulp cone with HE twin roll fabric surround. 42mm (15/8") edge wound voice coil |
Dispersion | 90 degrees conical |
CROSSOVER | |
Frequency | 1.8kHz |
Type | Bi-wired, hard wired passive, low loss 2nd order compensated LF, 2nd order HF |
Adjustment | +/- 3dB over 1.8 kHz to 25 kHz shelving |
CONSTRUCTION | |
Enclosure type | Distributed Port |
Volume | 85L (3 cu.ft) |
Dimensions | 850 x 397 x 368mm (33.50 x 15.50 x 14.50) |
Weight | 23kg (50.7 lbs) |
Finish | Walnut veneer with solid walnut edging and trim detail |
Blue Circle B3
Blue Circle BC3 Tube Preamp
Description: Polarity-inverting, single-ended, class-A
triode line-stage preamplifier with dual-mono controls. Tube complement: two
6922. Each channel: Five line-level inputs, one tape input; two main outputs,
one tape output. Maximum output: 25V RMS. Left/right volume-control tracking:
better than 0.2dB. No other specifications given.
BCG3.1 power
supply: Dual 40VA toroidal transformers, Hexfred rectifier diodes,
Cardas internal wiring and DC power interconnect cable, integrated AC power-line
conditioner.
Dimensions: BC3.1 preamp chassis: 17.5" W by
5.375" H by 14.6" D. Weight: 35 lbs. BCG3.1 power supply: 6" W by 5.375" H by
14.6" D. Weight: 16 lbs.
Audio Research DAC 3 MK II
DAC3 MKII:
Frequency response | 0.1-20,000Hz, ± .2dB |
---|---|
Distortion | -86dB (0.005%) 1kHz |
S/N ratio | 90 dB (unweighted 20-20,000Hz) |
Phase linearity | ±0.5° (20-20, 000Hz) |
Channel separation | 120dB (1kHz) |
Resolution | 1 bit, 64x Oversampling delta-sigma, 8x interpolation |
Output impedance | 200 ohms unbalanced, 400 ohms balanced |
Analog outputs | 1.50 Vrms (+5dBV full output) |
Unbalanced RCA Phono Jacks 3.00 Vrms (+11dbv full lntput) | |
Balanced XLR Jacks | |
Digital outputs | TOSLINK Optical 660nm (digital pass-through) |
Digital inputs | ST type glass fiber optics; 1300 nm, 62.5/125 fiber |
TOSLINK fiber optics 660nm | |
(Switch selectable): BNC coax 75 ohm (SPDIF) or XLR Balanced AES/EBU | |
Tube complement | (4) 6922 |
Power requirements | 95-135VAC 60Hz (190-270VAC 50/60Hz), 55 watts maximum |
Other | Format: 32kHz (DBS), 44.1kHz (CD), 48kHz (DAT). Input resolution: 18 bits (maximum). Reclocking method: PLL x 2. 2nd PLL corner frequency @ 12Hz. Inverting switch: Digital Domain. Panel indicators: Power On, Digital Lock. Compliance: RF interference complies with FCC and VDE. Power supply: 2 Transformers, 2 Discrete Regulators, 8 IC Regulators. Line fuse: 1 1/2A slo-blo (3/4A slo-blo 240V). |
Dimensions | 19" (48 cm) W x 5.25" (13.4 cm) H x 11.75" (29.8 cm) D. Handles extend 1.50" (3.8 cm) forward of front panel. Rear chassis fittings extend .75" (2.3 cm) |
Weight | 15.2 lbs. (6.9 kg) Net; 27 lbs. (12.3 kg) Shipping. |
Audio Research SP 6 C-1
Specifications
Frequency response High level section: ±.25dB, 10Hz to 30kHz.
-3dB points approximately .1Hz and 250kHz into hi-Z load.
(-3dB point approximately 1 Hz into 100kOhm load.)
Magnetic phono: ±1dB of RIAA from 30Hz to 15kHz.
High level:
(1) 250 µv RMS maximum residual unweighted wide-band noise at main output with gain control minimum (86dB below 5V RMS output).
(2) More than 90dB below 1V RMS input (less than 20 µV equivalent input noise).
Magnetic phono: 5 µV equivalent input noise, wideband RMS (-66dB reference 10mV input).
Gain Magnetic phono input to tape output, 34dB. Magnetic phono input to main output, 60dB. High level inputs to tape output, 0dB. High level inputs to main output, 26dB.
Input impedance 50 kOhms, all inputs. (Magnetic phono may have any value from 10 ohms to 100 kOhms substituted. Also has provision to add input capacitance for matching certain magnetic cartridges.)
Output impedance 500 ohms at 1kHz, rising to 2.1 kOhms at 20Hz, all outputs.
Recommended minimum load for maximum audio quality, 20 kOhms.
Tube complement
SP-6C: (2) 12AX7 LN, (2) 12AX7, (2) 6922
Power requirements 105-120/210-240 VAC, 50/60 Hz, 35 watts.
Other
Dimensions 19" (48 cm) W x 5 1/4" (13.4 cm) H (standard rack panel) x 10 1/4" (26 cm) D.
Handles extend 1 5/8" (4.1 cm) forward of front panel.
Rear chassis fittings extend 7/8" (2.3 cm).
Weight 22 lbs. (10 kg) Net, 30 lbs. (13.75 kg) Shipping
Frequency response High level section: ±.25dB, 10Hz to 30kHz.
-3dB points approximately .1Hz and 250kHz into hi-Z load.
(-3dB point approximately 1 Hz into 100kOhm load.)
Magnetic phono: ±1dB of RIAA from 30Hz to 15kHz.
High level:
(1) 250 µv RMS maximum residual unweighted wide-band noise at main output with gain control minimum (86dB below 5V RMS output).
(2) More than 90dB below 1V RMS input (less than 20 µV equivalent input noise).
Magnetic phono: 5 µV equivalent input noise, wideband RMS (-66dB reference 10mV input).
Gain Magnetic phono input to tape output, 34dB. Magnetic phono input to main output, 60dB. High level inputs to tape output, 0dB. High level inputs to main output, 26dB.
Input impedance 50 kOhms, all inputs. (Magnetic phono may have any value from 10 ohms to 100 kOhms substituted. Also has provision to add input capacitance for matching certain magnetic cartridges.)
Output impedance 500 ohms at 1kHz, rising to 2.1 kOhms at 20Hz, all outputs.
Recommended minimum load for maximum audio quality, 20 kOhms.
Tube complement
SP-6C: (2) 12AX7 LN, (2) 12AX7, (2) 6922
Power requirements 105-120/210-240 VAC, 50/60 Hz, 35 watts.
Other
Dimensions 19" (48 cm) W x 5 1/4" (13.4 cm) H (standard rack panel) x 10 1/4" (26 cm) D.
Handles extend 1 5/8" (4.1 cm) forward of front panel.
Rear chassis fittings extend 7/8" (2.3 cm).
Weight 22 lbs. (10 kg) Net, 30 lbs. (13.75 kg) Shipping
Canary Audio CA 300 Mono Block Power Amplifier
SPECIFICATIONS
Model: CA-300
Rated Power Output: 8 Watts RMS
Input Sensitivity: 1.2 Volts for full output
Input Impedance: 100,000 Ohms
Frequency Response: +/- 3 dB from 10 Hz to 54,000 Hz
Total Harmonic: < 0.3%
Signal-to-Noise ratio: -84 dB below 1 Watt
Damping Factor: 3
Power Consumption: 100 Watts (true RMS)
Output Impedance: 4, 8 Ohm
Tube Complement (per channel): 1-300B,
1-6SL7GTB,
1-5U4GB
Dimensions (per channel): 8” W x 18” D x 7” H
Weight (per channel): 33 lbs.
Thursday, October 6, 2011
Subscribe to:
Posts (Atom)
